Features:

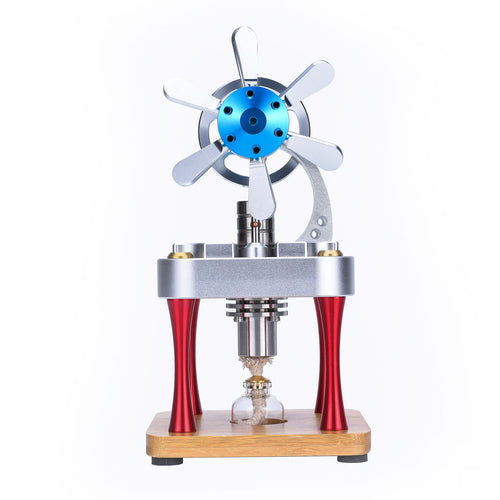

.The Stirling engine model adopts aluminum alloy flywheel and fan design, cooling by fan, high speed, stable operation. The main body and bracket are made of aluminum alloy, and the surface is anodized, which is rich in metallic luster. With natural bamboo base, both beauty and texture, unique collection crafts.
.Use high-hardness precision bearings, stainless steel heating tubes and aluminum alloy ventilating pistons, alloy steel power cylinders with precision brass power pistons, good wear resistance under high-speed operation, long life, no need to worry about broken glass cylinder pistons and life, precision machining manufacturing shows high-end craftsmanship quality.
.Instructions for Use: Please read the instructions before use. Take out the alcohol lamp and add 95% alcohol (not more than 2/3 of the container). Ignite the alcohol lamp and heat it for about one minute, then start the flywheel by hand until the machine runs.
.Note: The cylinder, piston, bearing, connecting rod and other moving positions of the machine are prohibited from filling oil. During the whole heating process, do not touch the hot parts of the machine to prevent burns. Pay attention to the safety of using alcohol, children should use it under the supervision of adults. Before placing the machine on the desktop for heating, please place a wet towel between the desktop and the machine to effectively insulate the machine and reduce the vibration of the machine. When the machine is running at high speed, it may vibrate and shift. Please prevent the machine from falling from the desktop.
.Significance and Value of Use: By observing the running process of the engine, we can understand its structure and principle, and at the same time can truly restore the principle of Stirling engine operation, hands-on operation, and popular science knowledge. It has high quality, exquisite appearance, and high collection value. It can be used as a high-end exquisite gift of mechanical craftsmanship.
.For Ages: 14+
Specifications:
.Color: As Shown
.Material: Stainless Steel + Aluminum Alloy + Alloy Steel + Brass + Bamboo
.Model: M16-CF
.Cooling Method: Air cooling
.Inner Diameter of Heating Tube: 20mm
.Piston Stroke: 16mm
.Piston Diameter: 16mm
.Flywheel Diameter: 65mm
.Fan Diameter: 102mm
.Bearing Model: Precision F684ZZ
.Heating Tube Material: 304 stainless steel
.Material of Ventilating Piston: 6061 aluminum alloy
.Power Cylinder Material: SUJ alloy steel
.Power Piston Material: Brass
.Bracket Material: 6061 aluminum alloy
.Flywheel Material: 6061 aluminum alloy
.Fan Material: 6061 aluminum alloy
.Main Body: 6061 aluminum alloy
.Base Material: Bamboo
.Product Dimensions: 10.5 x 10.5 x 21.8cm
.Product Weight: 970g
.Package Dimensions: 15 x 15 x 25cm
.Package Weight: 1100g
.Packing: Box
Package Content:
.1 x Stirling Engine Model
