Warm Tips:
The engine is out of stock and is in production now. It will be restocked on Oct or maybe later. Save up to USD $200 for the first 50 orders. Any question, please feel free to contact service@enginediy.com
PDF Instructions Here:
CISON FL4-175 (EN)
CISON FL4-175 Installation Tutorial
Features:
Exquisite mini shape:
FL4-175 engine has a unique compact appearance, simple but reliable structure, small size but large displacement. A collision of retro classics with modern machinery, it will work impressively.
Long stroke, high torque:
The side valve structure is adopted, the center of gravity is lower, and the weight is lighter. Taking the long stroke as the design basis, it effectively provides higher torque output.
Responsive and powerful:
Metal stainless steel one-piece printed intake and exhaust pipes, independent single carburetor design, easy to adjust, more sensitive throttle response, and low and powerful sound.
Effective and long-lasting work:
The external oil pump is used to supply oil to the crankshaft splash, and the independent lubrication effect is better. It is recommended to use a micro oil filter element. With water circulation cooling, the engine runs longer and has a longer service life.
Well-made:
The main body of the engine is mainly made of aluminum CNC precision machining, the special bimetallic cast iron piston ring, the high-precision hardened cylinder liner, the one-piece hardened crankshaft, the surface sandblasted and oxidized, rich in metal texture and mechanical sense.
Convenient ignition:
The self-developed four-cylinder electronic igniter is small in size and strong in anti-interference, which makes the ignition operation of the engine more stable, and is more friendly to players who use remote control electronic equipment.
Upgradability:
The oil pan has a reserved observation window, and the transparent window can be modified to observe the operation of the crankshaft in real time. The flywheel side reserves the installation position of the simulated automobile mechanical manual clutch for later players to upgrade.
RC Compatibility:
Lightweight structural design, better compatible with RC models. It is the perfect "heart" for low torque demanding 1/8 and 1/10 scale model climbing bikes.
Collection gift:
It is a perfect addition for mechanical enthusiasts, engine model enthusiasts and collectors, and it is also a good choice for RC oil-powered models. It can be used as a high-end personalized gift for family and friends.
Warm reminder:
The engine does not include the base, CDI igniter, spark plug, oil filter, etc. Please use the machine according to the instructions in the manual, so as not to damage the machine due to bad operation. If you have any questions, please contact us in time.
Product Details:
Material: metal
Color: as shown
Brand: CISON
Model: FL4-175
Name: flat head side valve inline four-cylinder four-stroke water-cooled gasoline engine model
Shape: assembled version
specification:
Total length: 135mm,height 90mm, cylinder length*width 96*43mm
Weight: 1100g
Displacement: 17.5cc
Bore: 16.7mm
Stroke: 20.0mm
Speed: 1600-9000rpm (or lower idle speed)
Power: 2.5ps
Lubrication method: splash lubrication/independent lubrication;
Cooling method: water cooling;
Ignition method: self-developed four-cylinder CDI electronic ignition
Fuel: gasoline

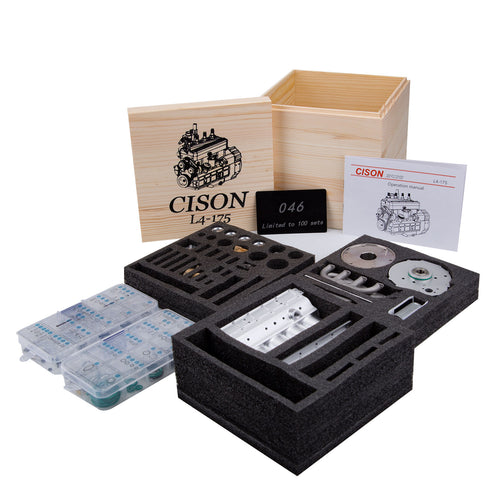

Package List:
1 x Engine
1 x Instruction
