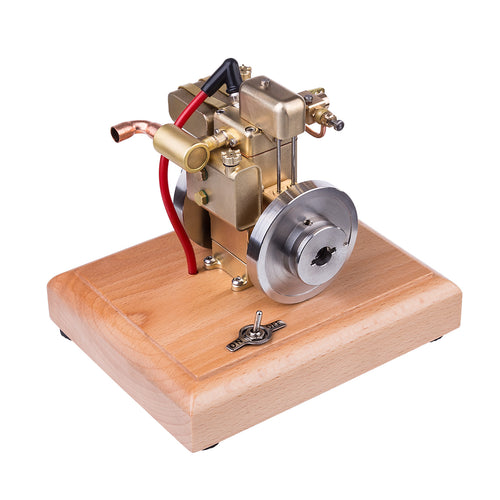

M12B 1.6cc Mini Water-cooled Single-cylinder 4-stroke Gasoline Engine Internal Combustion Engine Model with Wooden Base
Features:
This mini gasoline engine is carefully crafted from brass and stainless steel. It has a unique shape and a water-cooled cooling structure. The structure is stable and reliable. It is equipped with a wooden base for easy placement and operation. You will love this exquisite mini single cylinder four-stroke gasoline engine model.
Engine Starting Steps:
Step 1. Check the engine wiring from the wooden base, connect the fuel tank oil pipe, and install the AA battery (4.5V).
Step 2. Fill the fuel tank with 95# gasoline, after the filling is completed, put the flywheel on the engine The right side (the surface of the power switch) rotates clockwise multiple times without generating air.
Step 3. Turn on the power switch, and then quickly turn the flywheel clockwise on the right side of the engine (the surface of the power switch) to start the engine.
Warm Tips:
Tip 1. If the ignition device is normal and the cylinder compression is normal, and the machine cannot start normally, it is likely to need to adjust the carburetor oil needle.
Tip 2. After tightening the main oil needle on the carburetor, loosen 1/4 Circle and start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio.
Tip 3. When the machine stops running, turn off the power switch.
Value of Engine:
This exquisite engine model is easy to operate, and can be used as a desktop model to play with, as a boutique model collection, and is also an excellent personalized gift for model lovers.
Age Recommendation: 14+
Specifications:
.Color: As Shown
.Material: Brass + Stainless Steel + Wood
.Engine Size: 150 x 120 x 127mm
.Wooden Base Size: 150 x 120 x 30mm
.Displacement: 1.6cc
.Bore: 13mm
.Stroke: 12mm
.Use adjustable speed carburetor, matching ignition device
.Start Mode: External force (electric drill) or manual start
Fuel: 95# gasoline
.Product Dimensions: 15 x 12 x 12.7cm
.Product Weight: 1400g
.Package Dimensions: 20 x 20 x 15cm
.Package Weight: 1750g
.Packing: Box
Package Content:
.1 x Engine Model
.1 x Hand Puller
.1 x User Manual
