M16C 1.6cc Mini 4 Stroke Gasoline Engine Model Vertical Air-cooled Single-cylinder Internal Combustion Engine Model with Vane Pump
Features:

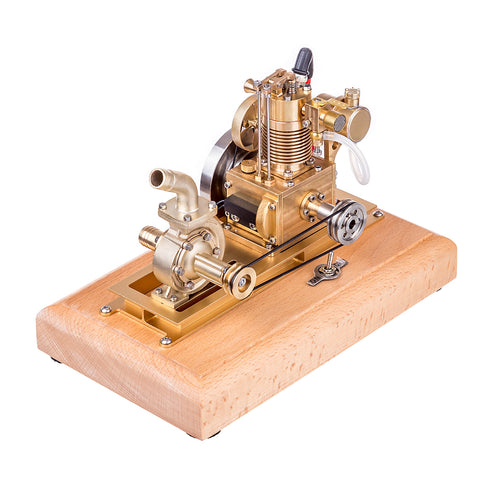

.This is a miniature engine with an air-cooled cooling structure and an adjustable speed carburetor. It is carefully crafted from brass and stainless steel, with a unique and exquisite shape. The addition of an impeller pump is more unique. With a wooden base, it is easy to place and operate. You will love this retro gasoline engine model.
Well-manufactured:
The engine is unique and exquisite in shape, stable and reliable in structural design, high in quality, excellent in craftsmanship, and stable in performance. This is a very distinctive desktop model engine, simple and fun to operate, you will feel the unique charm brought by the engine's mechanical operation.
Engine Starting Steps:
Step1. Check the engine wiring from the wooden base, connect the fuel tank oil pipe, and install 3 x AA batteries (4.5V);
Step2. Fill the fuel tank with 95# gasoline, after the filling is completed, put the flywheel in The right side of the engine (the surface of the power switch) rotates clockwise several times, which can make the mixed fuel completely enter the cylinder and ensure that there is no air in the fuel pipe;
Step3. Turn on the power switch, and then quickly turn the flywheel clockwise to move it on the right side of the engine (Power switch surface) start the engine.
Note:
1. If the ignition device is normal and the cylinder compression is normal, and the machine cannot start normally, it is likely to need to adjust the carburetor oil needle;
2. After tightening the main oil needle on the carburetor, loosen 1/4 Circle and start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio;
3. When the machine stops running, turn off the power switch.
Excellent Gift:
This is an amazing mechanical craft, feel the charm of the engine when it is working. Whether it is for personal use or as a gift of personalized high-end model to friends, family, model lovers during major festivals.
For Ages: 14+
Specifications:
.Color: As Shown
.Material: Brass + Stainless Steel + Wood
.Overall Size: 200x120x138mm
.Engine Size: 172x94x108mm
.Wooden Base Size: 200x120x30mm
.Displacement: 1.6CC
.Bore: 13mm
.Stroke: 12mm
.Flywheel Diameter: 56mm
.Fuel Tank Capacity: 8mL
.Ignition Device Power Supply Voltage: 4.5V (using 3 x AA batteries, excluding batteries)
.Start Mode: external force (electric drill) or hand pull start
.Fuel Used: Gasoline or aviation kerosene.
.Product Weight: 1400g
.Package Dimensions: 25 x 25 x 25cm
.Package Weight: 1900g
.Packing: Box
Package Content:
.1 x Engine
.1 x Puller
.1 x User Manual
