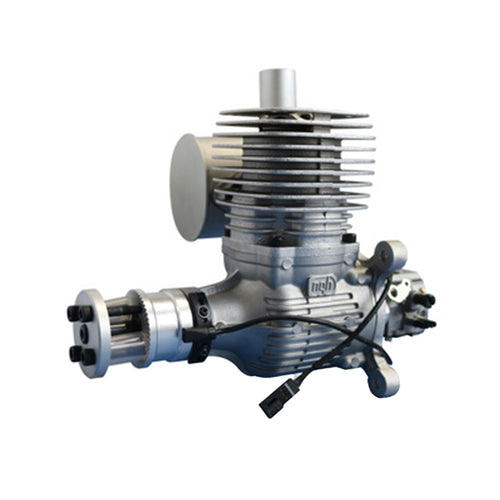

NGH GT65 65cc Single-Cylinder Two-Stroke Air-Cooled Gasoline Engine Model for Fixed-Wing RC Airplanes
Features:
.Designed by NGH engineers, this professional-grade two-stroke engine is perfect for RC planes with a takeoff weight of 10-15kg, as well as fixed-wing drones and vertical takeoff Unmanned Aerial Vehicles of similar weight. The GT65’s compact structure, stunning design, and powerful performance make it an excellent upgrade for your aircraft.
.Equipped with a rear-mounted carburetor, the GT65 offers easy adjustments and reliable operation. The precision-forged connecting rod with needle bearings ensures better lubrication of the pin shaft.
.The cylinder body utilizes ceramic plating technology, maintaining an inner hole roundness tolerance within 0.01mm, ensuring exceptional durability and performance.
.The engine's crankcase intake system and optional integrated welded pipe exhaust and Pitts silencers significantly reduce noise, earning high praise from RC enthusiasts worldwide. The patented dual-outlet exhaust silencer by NGH ensures smooth exhaust flow and low noise levels.
.The GT65 also features an automatic advance ignition system and bearings, making it a reliable choice for serious hobbyists.
Specification:
.Material: Metal
.Model: GT65
.Cylinders: Single-cylinder
.Strokes: 2-stroke
.Cooling Method: Air-cooled
.Displacement: 65cc
.Bore: 48mm
.Stroke: 36mm
.Practical Speed Range: 1200-7000rpm
.Output Power: 6.7HP/7500rpm
.Tensile Force: 11kg
.Fuel: 95 # Unleaded Gasoline + Fully Synthetic 2T Lubricant
.Lubrication Ratio: Gasoline: Lubricating Oil =35:1
.Compression Ratio: 10:1
.Engine Weight: 1650g
.Exhaust Pipe Weight: 125g
.Igniter Weight: 100g
.Igniter Power Supply: DC 6V-14.4V 1000mAh
.Applicable Spark Plug Model: CM-6
.Recommended Propeller Specifications: 23×8-10, 24x8-10 (Dual-blade)
.Product Weight: 1650g
.Package Dimensions: 25 x 25 x 25cm
.Package Weight: 2600g
.Packing: Box
.Ages: 16+
Packaging List:
.Engine *1
.Exhaust Pipe *1
.Spark Plug *1
.CDI Ignition *1
.Mounting Bracket *1
.User Manual and Warranty Card *1
