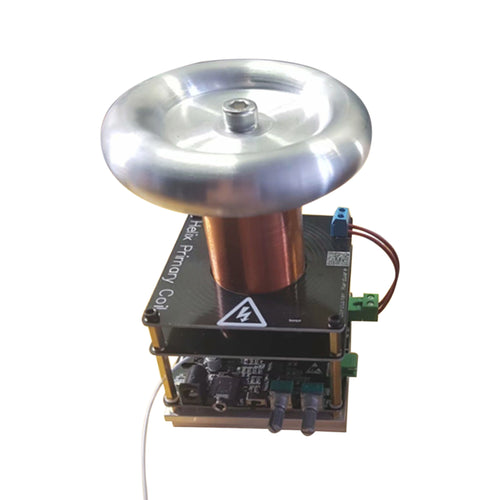

Music Tesla Coil Artificial Lightning Maker Scientific Experiment Toy
Features:
.It is made of newly designed PCB circuit board. The circuit design is reasonable, and the coil is coated with a special epoxy resin, which is more durable and more beautiful
.Is an artificial lightning maker, there are Tesla coil enthusiasts all over the world, they have made a variety of equipment, the artificial lightning storm created is very spectacular and colorful
.Tesla coil is not only playable, but also an exquisite electronic handicraft, which can be used for decoration and decoration
.The machine includes a drive circuit board, a heat sink, a PCB printed flat primary coil, a feedback magnetic ring, a secondary coil, a pressure equalizing ring and a number of wires
.Only need to prepare two sets of power supplies: DC 12V, used for driving, power supply for arc extinguishing, 5.5/2.1 DC interface. Discharge power supply, DC 0-100V, used for full-bridge power supply. Be sure not to use too high voltage, otherwise it may cause adverse consequences such as primary breakdown and cause damage to the SSTC
.This is an artificial lightning Tesla coil. The principle is to use a variable voltage cry to boost the ordinary voltage, then charge the primary LC loop resonant capacitor, charge it to the discharge threshold, and break down the air spark gap to discharge and conduct, so that The primary LC circuit generates series resonance, which provides the secondary coil with a sufficiently high excitation power, followed by the same frequency as the secondary coil LC circuit, so that the inductance of the secondary coil and the distributed capacitance are in series resonance, which is the highest discharge tip voltage. It can easily convert a small voltage into a purple arc that can penetrate the air, so you can see lightning.
.Notes: 1. When the product is working, do not directly touch the arc with your hands. You need to adjust the arc to a length of less than 10MM before you can use the hand-held metal conductor to contact; 2. During the working of the coil, it will affect the surrounding electronic products Cause serious interference, this is the characteristic of the Tesla coil itself, please do not let mobile phones or other electronic products close to the Tesla coil to avoid damage; 3. The high temperature and high pressure arc output of the Tesla coil will cause the gas in the air to form other Compounds, including ozone and nitrogen oxides, so please keep the environment well ventilated when working; 4. The high temperature arc of the Tesla coil can ignite flammable objects. Please do not use the coil in a flammable and explosive environment; 5. Special After the SLA coil is energized and running, please do not touch the secondary coil directly. There will be a certain induced voltage in the secondary coil. Let it stand for at least 30 minutes, and wait for the natural discharge
Specifications:
.Color: As Shown
.Material: PCB Board + Components + Plexiglass + Stainless Steel + Copper
.Product Dimensions: 12.5 x 12.5 x 30cm
.Product Weight: 800g
.Package Dimensions: 25 x 25 x 25cm
.Package Weight: 1000g
.Packing: Box
Package Content:
.1 x Tesla Coil
.1 x Power Line
