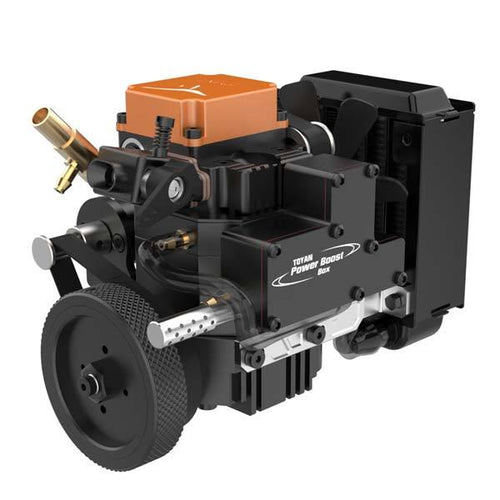

Toyan Engine FS-S100AG2 4 Stroke RC Engine with Water Cooled Pump and Radiator
Toyan Engine FS-S100AG2 is an upgrade version of other FS series single cylinder Toyan 4 stroke rc engine. Toyan S100AG2 comes with water cooling pump, cooling water channel, and water cooling box accessories. It has a large conversion potential and no need to reprocess the water cooling channel by itself; and it is stable in work, can work for a long time without rest, and is stable at high efficiency speed.
Features:
1, Upgrade Water-Cooling Version: comes with water cooling pump, cooling water channel, and water cooling box accessories. It has a large conversion potential and no need to reprocess the water cooling channel by itself. With it, no need worry that engine is over-heat.
2, Powerful Performance: While it starts, the rotate speed can up to 13500 RPM / Mins.
3, Fuel: the fuel is consisting of : 20% castor oil, nitro-methane 5-30%, and the rest is methanol. 20-25% methanol content can be used as fuel. No need 100% pure methanol.
4, Extra Accessories Needed for Operation: Spark plug + Starting ESC module + 30cm oil tube +F-shape Glow Plug, which can be purchased in our shop directly. ( click buy directly)
5, Priority Gift Option for Many Applications: The four-stroke engine can used on 1:10, 1:12, 1:14 scale car model or ship model and other equipment. Also, it can be used for classroom display as teaching Aids. Besides, it is ideal Gift for engine lovers.
Tips:
1, Do not touch the motor fan with your hands to avoid scratching.
2, Do not touch the cylinder department with your hands to prevent burns.
3, Lubricating engine first before use, to avoid wear. (Lubricate grease is included into the package)
Descriptions:
Item Name: Toyan Engine FS-S100AG2
Material: Metal + Plastic
Engine Dimensions: 100.5 x 85.4 x 86.5mm
Piston Diameter: 16.67mm
Displacement: 3.5cc
Output Power: 0.5ps horsepower
Speed: 2200-10500rpm
Product Dimensions: 10.5 x 8.54 x 8.65cm
Product Weight: 490g
Package Dimensions: 12 x 10 x 10cm
Package Weight: 520g
Packing: Box
Packing List:
1 x Water Cooling Four Stroke Methanol Engine
Best Deal: Extra 10% OFF Coupon Code : EDRC . Save $36.99, get the engine with Price $ 332.99
Working of a Four Stroke Methanol Engine
A stroke is the movement of the piston from the top, to the bottom of the cylinder. the Four Stroke Methanol Engine uses a cycle of four strokes and Methanol as the fuel. Each cycle includes 2 rotations of the crankshaft and four strokes, namely:
1.An Intake Stroke
2.A Compression Stroke
3.A Combustion Stroke also called Power Stroke
4.An Exhaust Stroke
Why Use Methanol Injection Fuel?
1. Increase the engine working power
2, Cooler intake temperatures allow you to run more aggressive timing and/or boost (forced induction applications)
3, Reduced chance of detonation
4, More economical for the street: water/methanol is a less expensive high-octane alternative to pure race gas for guys running high compression engines on the street
5, Built-in engine maintenance: The atomized water effectively steam cleans the valves, valve seats, and even the piston tops and intake, reducing carbon buildup
Why Choose Four Stroke Engine?
1, 4 stroke engine has higher torque at lower rpm as compared to 2 stroke engine.
2, More fuel efficient than 2 stroke engine.
3, It creates less pollution as no oil is burned during combustion.
4, 4 stroke engine lasts longer than 2 stroke engine as 2 stroke engines are designed for high rpm and at high rpm engines wears at faster rate hence less durable.
5, It has a separate oil chamber.
